Overview - Air Ducts And Vents In Rear Passenger Compartment
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. The component layout is a mirror image for RHD vehicles.

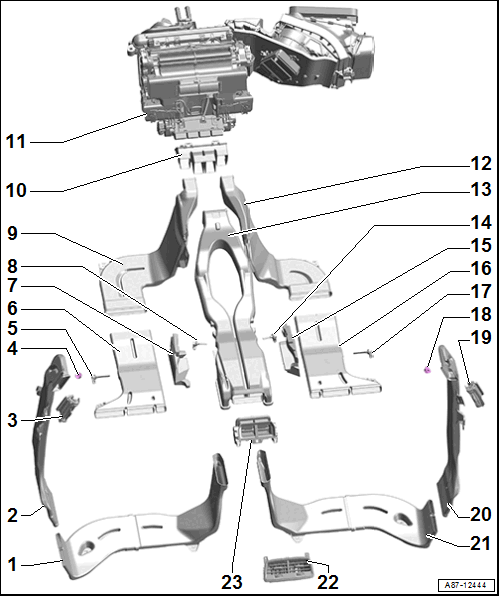

- Air Guide to Air Duct in Left B-Pillar
- Air duct in the left B-pillar
- Vent in the left B-pillar
- Removing and installing. Refer to the appropriate service information .
- Expanding Rivet
- Quantity: 3
- Left Rear Footwell Vent Temperature Sensor -G637-
- Installed depending on vehicle equipment
- Removing and Installing. Refer to Left Rear Footwell Vent Temperature Sensor -G637- / Right Rear Footwell Vent Temperature Sensor -G638-, REMOVING AND INSTALLING .
- Left Passenger Compartment Footwell Vent
- Crashpad
- Left Rear Upper Body Vent Temperature Sensor -G635- - PR Number 9AU
- Removing and Installing. Refer to Left Rear Upper Body Vent Temperature Sensor -G635- / Right Rear Upper Body Vent Temperature Sensor -G636-, REMOVING AND INSTALLING .
- Left Air Duct to Passenger Compartment Footwell Vent
- Air Duct
- Heater and A/C Unit
- There are different versions. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - HEATER AND A/C UNIT .
- Air intake, air vents and air routing in the heater and A/C unit. Refer to AIR DUCT IN FRONT HEATER AND A/C UNIT .
- Right Air Duct To Passenger Compartment Footwell Vent
- Rear Air Duct
- Removing and Installing. Refer to REAR AIR DUCT, REMOVING AND INSTALLING .
- Right Rear Upper Body Vent Temperature Sensor -G636- - PR Number 9AU
- Removing and Installing. Refer to Left Rear Upper Body Vent Temperature Sensor -G635- / Right Rear Upper Body Vent Temperature Sensor -G636-, REMOVING AND INSTALLING .
- Crashpad
- Right Passenger Compartment Footwell Vent
- Right Rear Footwell Vent Temperature Sensor -G638-
- Removing and Installing. Refer to Left Rear Footwell Vent Temperature Sensor -G637- / Right Rear Footwell Vent Temperature Sensor -G638-, REMOVING AND INSTALLING .
- Expanding Rivet
- Quantity: 3
- Vent in the Right B-Pillar
- Removing and installing. Refer to the appropriate service information .
- Air Duct in the Right B-Pillar
- Air Guide to Air Duct in Right B-Pillar
- Rear Center Console Vent
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Air Duct for Rear Vent
- Overview. Refer to OVERVIEW - REAR ACTUATORS .
- Removing and Installing. Refer to REAR VENT AIR DUCT, REMOVING AND INSTALLING .
