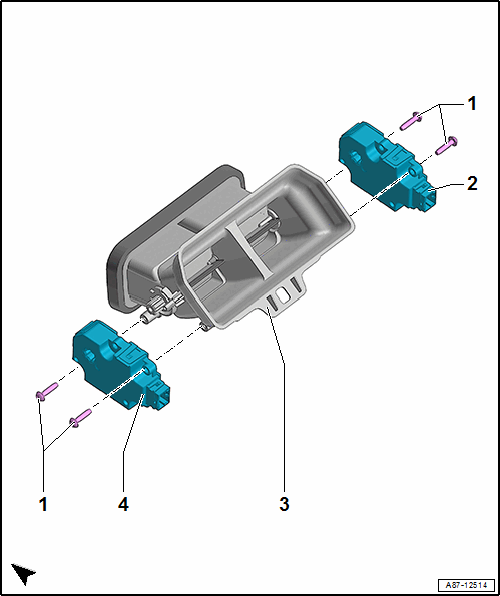

Overview - Rear Actuators
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1 Nm
- Right B-Pillar/Footwell Shut-Off Door Motor -V211-
- Removing and Installing. Refer to Right B-Pillar/Footwell Shut-Off Door Motor -V211- / Left B-Pillar/Footwell Shut-Off Door Motor -V212-, REMOVING AND INSTALLING .
- Air Duct for Rear Vent
- Removing and Installing. Refer to REAR VENT AIR DUCT, REMOVING AND INSTALLING .
- Left B-Pillar/Footwell Shut-Off Door Motor -V212-
- Removing and Installing. Refer to Right B-Pillar/Footwell Shut-Off Door Motor -V211- / Left B-Pillar/Footwell Shut-Off Door Motor -V212-, REMOVING AND INSTALLING .
