Overview - Crankshaft
WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.
- For assembly work, secure the engine to the Engine and Transmission Holder. Refer to ENGINE, SECURING TO ENGINE AND TRANSMISSION HOLDER .
- Cylinder Block
- Bolt
- Replace after removing
- Use the old bolts for radial clearance measurement
- Tightening Specifications and Sequence. Refer to Fig 2.
- Crankshaft
- Axial play, measuring. Refer to CRANKSHAFT, MEASURING AXIAL CLEARANCE .
- Radial play, measuring. Refer to CRANKSHAFT, MEASURING RADIAL CLEARANCE .
- Crankshaft dimensions. Refer to CRANKSHAFT DIMENSIONS .
- Perform the adaptation after removing or replacing using the => Vehicle Diagnostic Tester 0001 - Engine electronics, functions , 0001 - Chain length diagnostic adaptation
- Alignment Sleeves
- Bolt
- Replace after removing
- Use the old bolts for radial clearance measurement
- Tightening Specifications and Sequence. Refer to Fig 2.
- Bearing Cap
- Bearing cap "1" : belt pulley side
- Installation position: bearing shell retaining tabs in cylinder block and in bearing shells must align
- Bolt
- Replace after removing
- Tightening Specifications and Sequence. Refer to Fig 2.
- Bearing Shell
- For bearing cap without oil groove
- Replace any worn bearing shells
- Insert the new bearing shells with the correct color coding. Refer to Fig 4.
- Thrust Washers
- For bearing "5"
- Needle Bearing
- Replacing. Refer to CRANKSHAFT NEEDLE BEARING, REPLACING .
- Alignment Pin
- Thrust Washers
- For bearing "5"
- Bearing Shell
- For cylinder block with oil groove
- Replace any worn bearing shells
- Insert new cylinder block bearing shells with the correct color coding. Refer to Fig 3
- Seal
- Not available separately in the delivery package ) OVERVIEW - CRANKSHAFT
- Plug
- 30 Nm
Bearing cap - tightening specification and sequence
- Replace bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 to 12- | Install all the way by hand |
| 2. | -1 to 12- | 10 Nm |
| 3. | -1 to 12- | 60 Nm |
| -1 to 12- | 90° additional turn | |
| 5. | -arrows 13 to 20- | 20 Nm |
| 6. | -arrows 13 to 20- | 90° additional turn |

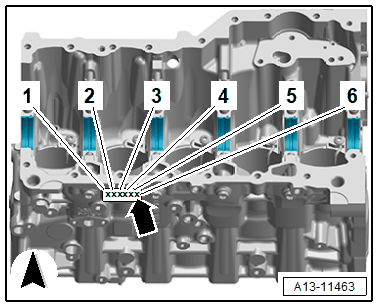

Allocation of the crankshaft bearing shells for the cylinder block
- Bearing shells with the correct thickness are allocated to the cylinder block in the factory. The color marks on the sides of the bearing shell mark the bearing shell thickness.
- Which bearing thickness is inserted in which location is marked on the side of the cylinder block with letters. The first letter of the row of letters represents bearing "1", the second letter is for bearing "2", etc.
| Letter on cylinder block | Color of bearing | |
|---|---|---|
| G | = | Yellow |
| B | = | Blue |
| V | = | purple |
Pfeil -
Direction of Travel
Allocation of crankshaft bearing shells for bearing cap
- Bearing shells with correct thickness are allocated to bearing cap at factory. The color marks on the sides of the bearing shell mark the bearing shell thickness.
- The allocation of the bearing shells to the bearing cap is marked on the crankshaft transmission flange by a row of letters. The first letter of the row of letters represents bearing "1", the second letter is for bearing "2", etc.
| Letter on crankshaft | Color of bearing | |
|---|---|---|
| G | = | Yellow |
| B | = | Blue |
| V | = | purple |
| S | = | Black |
Pfeil -
Direction of Travel
