Overview - Bevel Box Components, 0FV
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

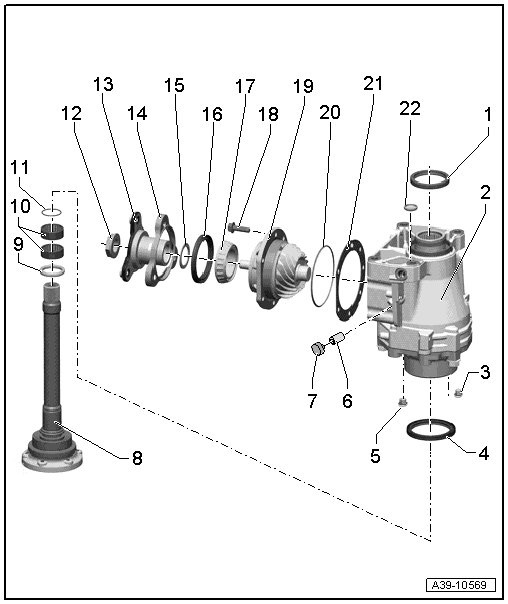

Characteristics of the bevel box. Refer to BEVEL BOX IDENTIFICATION .
- Left Seal
- Replacing. Refer to LEFT SEAL, REPLACING .
- Bevel Box
- Removing and Installing. Refer to BEVEL BOX .
- Fluid Drain Plug
- 15 Nm
- Always replace.
- With permanent seal
- Right Seal
- Replacing. Refer to RIGHT SEAL, REPLACING .
- Fluid Filler Plug
- 15 Nm
- Always replace.
- With permanent seal
- Bleed Pipe
- For bleeding the bevel box
- The component is not a replacement part
- Cap
- For bleeding the bevel box
- Right Flange Shaft
- Removing and Installing. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING, VEHICLES WITH AWD .
- Seal
- Replace
- Insert into the surrounding right flange shaft groove
- To replace, remove the needle bearing (polygon bearing)
- Needle Bearing (Polygon Bearing)
- If it is difficult to move when the flange shaft is removed, this is not an indication of a malfunction.
- Acoustic test only when installed
- Check for damage, for example for cracks on the bearing outer race
- Replacing. Refer to RIGHT FLANGE SHAFT NEEDLE BEARING, REPLACING .
- Circlip
- Replace
- Nut
- 480 Nm
- Install with Locking Fluid:D 000 600 .
- Replace
- Bevel Box Output Flange
- Output Flange Cap
- Locked with the output flange
- Replace if damaged
- Shim
- The component is not a replacement part
- Output Flange Seal
- Replacing. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING, 0FV .
- Tapered Bearing Inner Race
- The component is not a replacement part
- Bolt
- 25 Nm
- Some bolts are double bolts for securing the right drive axle heat shield
- Pinion Housing
- With shaft bevel gear and outer race for tapered roller bearing
- Components are not replacement parts
- Carefully pry out from side to side
- Note the fastening holes; the pinion housing fits only in one position
- O-Ring
- To replace, remove the bolts OVERVIEW - BEVEL BOX COMPONENTS, 0FV and carefully pry the pinion housing out at the tabs protruding all the way around.
- Shim
- The component is not a replacement part
- Note the bevel box fastening holes; the shim only fits in one position
- Cap
- Drive in all the way with the Holding Fixture - Spacers:VW 540/1 B .
