Output Flange, Removing And Installing, 0FV
Characteristics of the bevel box. Refer to BEVEL BOX IDENTIFICATION .
Special tools and workshop equipment required
- Press Piece - Multiple Use:VW 412
- Press Piece - Multiple Use:VW 454
- Press Piece - Multiple Use:VW 455
- Press Plate:VW 401
- Two M8 x 30 mm stud bolts or Guide Pins - M8:T10273
- Removal Device Pin 2:VW 460/2
Special tools and workshop equipment required
- Press Piece - Multiple Use:40-105
- Seal Installer - Flange Shaft:T10049
- Gearbox Support:T10108
- Gearbox Support:T10108/1
- Puller - Taper Roller Bearing:V.A.G 1582
- Puller - Taper Roller Bearing - Adapter 13:V.A.G 1582/13
Special tools and workshop equipment required
- Dial Indicator Holder:VW 387
- Torque Wrench 1601:V.A.G 1601
- Three-Arm Puller (Kukko 45/2):VAS 251 205
- Dial Indicator:VAS 6080A
- Sealing Grease. Refer to the Parts Information.
- Locking fluid. Refer to the Parts Information.
- M10 x 30 bolts (quantity: 2)
- M12 x 10 nuts (quantity: 4)
Procedure
- Pay attention to the different versions of the bevel box. Refer to BEVEL BOX IDENTIFICATION .
- A inner race/tapered roller bearing is pressed onto the bevel box output flange.
- This is removed later in the procedure.
- Do not replace the tapered roller bearing for the bevel box output flange and the shims.
- Tightening specifications. Refer to OVERVIEW - BEVEL BOX COMPONENTS, 0FV .
Remove the seal for the output flange
-- Remove the bevel box. Refer to BEVEL BOX, REMOVING .
-- Place the bevel box on the hole -arrow- marked with "4" in the Gearbox Support:T10108 by placing M12 x 10 nuts -item A- between the bevel box and the transmission holder.
-- Align the bevel box with the remaining three holes and secure it with the nut -A-.
-- Drain the gear oil from the bevel box. Refer to GEAR OIL, DRAINING AND FILLING .
-- Lock the bevel box output flange using the Gearbox Support - Stop Plate :T10108/1 by installing the two M10 x 30 bolts -arrows-.
-- Remove the output flange nut.
A - 36 mm Socket for 3 /4 Drive
-- Pivot the bevel box so that the output flange faces upward.
-- Remove the output flange from the bevel box shaft bevel gear.
A - Three-Arm Puller (Kukko 45/2):VAS 251 205
When removing the output flange the tapered bearing inner race and the seal -arrow- remain on the output flange.
Remove the seal as follows:
-- Place the Press Piece - Multiple Use:40-105 on the output flange.
-- Remove the tapered roller bearing inner race from the output flange using the Taper Roller Bearing Extractor:V.A.G 1582A and Puller - Taper Roller Bearing - Adapter 13:V.A.G 1582/13 .
-- Remove the output flange seal.
Install the output flange seal

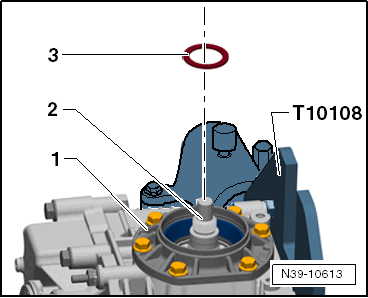

- First remove the pinion housing -1- along with the shaft bevel gear -2- in order to install the seal.
-- Remove the bolts for the pinion housing -1- ; and carefully remove the pinion housing diagonally off the protruding edges.
-- Remove the pinion housing and the shaft bevel gear -2-.
-- Clean the thread on the shaft bevel gear.
- If the shim -3- was also removed when removing the output flange, it must be reinstalled in the pinion housing.
- This will maintain the bearing pre-load on the shaft bevel gear inside the pinion housing.
-- Place the old inner race/tapered roller bearing -1- into the pinion housing.
-- Lightly lubricate the outer diameter of the new output flange seal -2-.
-- Drive in the new seal using the Seal Installer - Flange Shaft:T10049 .
- The seal must be flush with the upper edge of the housing.
-- Fill the space between the sealing/dust lip halfway with sealing grease. Refer to the Parts Information.
-- Press the output flange all the way in along with the pinion housing and shaft bevel gear.
- The shoulder -arrow- of the Press Piece - Multiple Use:VW 455 points to the shaft bevel gear.
-- Install the M8 X 30 mm stud bolts = -A- or Guide Pins - M8:T10273 in the axle drive housing.
-- Slide a new O-Ring -1- onto the pinion housing -2-.
The pinion housing -2- and shim -3- only fit in one position.
-- Install the previous shim -3-.
-- Carefully install the pinion housing diagonally all the way with Removal Device Pins 2:VW 460/2 .
There is very little space between the pinion housing and the bevel box housing.
The gap is closed when the pinion housing is tightened.
-- Tighten the bolts for the pinion housing -2- diagonally to the tightening specification OVERVIEW - BEVEL BOX COMPONENTS, 0FV.
-- Coat the threads on the new output flange nut with locking fluid (refer to the Parts Information and tighten it to the tightening specification OVERVIEW - BEVEL BOX COMPONENTS, 0FV.
A - 36 mm Socket for 3 /4 Drive
Radial Run-Out on Output Flange/Shaft Bevel Gear, Measuring
- Check the radial run-out on the shaft bevel gear alignment pin after tightening the output flange nut.
-- Secure measuring tools to bevel box with bolt -A- (M8 x 25 mm).
-- Position the Dial Gauge for example Dial Indicator:VAS 6080A on the shaft bevel gear alignment pin -B- and set it to "0" with 1 mm pre-tension.
-- Turn the output flange one complete rotation -direction of the arrow-.
-- Read the measured value on the Dial Gauge.
- Maximum radial run-out = 0.05 mm.
-- Install the bevel box. Refer to BEVEL BOX, INSTALLING .
-- Check the gear oil level in bevel box. Refer to GEAR OIL, CHECKING LEVEL .
