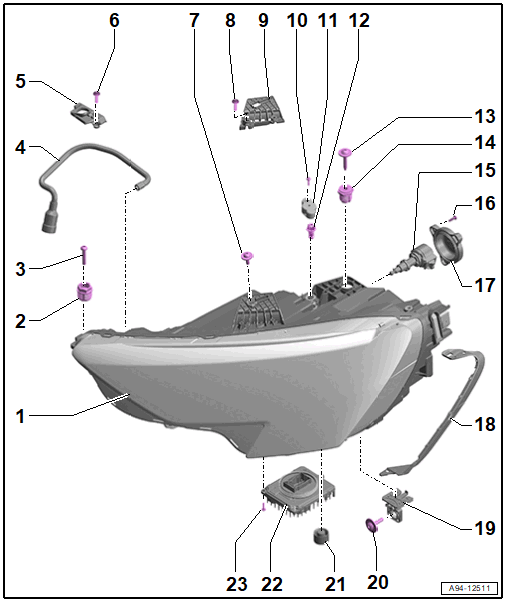

Overview - Headlamp, 8IT, 8IY, 8JT
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Housing
- Removing and Installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Adjusting Nut
- For the headlamp height adjustment
- Bolt
- 6 Nm
- Breather Hose
- For the headlamp housing
- Inner Tab
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING .
- Bolt
- 6 Nm
- Bolt
- 6 Nm
- Bolt
- 6 Nm
- Outer Tab
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING .
- Bolt
- 1 Nm
- Adapter
- For the height adjustment
- Height Adjustment Screw
- With gasket
- Bolt
- 6 Nm
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and Installing. Refer to Left Headlamp Range Control Adjustment Motor -V48- / Right Headlamp Range Control Adjustment Motor -V49-, REMOVING AND INSTALLING, 8IT, 8IY, 8JT .
- Bolt
- Quantity: 3
- 1.5 Nm
- Housing Cover
- Sealing Frame
- Removing and Installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Headlamp Housing Mount
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
- Filter Membrane
- Removing and Installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING .
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Removing and Installing. Refer to Right LED Headlamp Power Output Module 1 -A27- /Left LED Headlamp Power Output Module 1 -A31-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 1.5 Nm
