Headlamp Housing Repair Kit, Installing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
TIP:
Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is therefore not necessary.
Procedure
-- Remove the headlamp with the broken tabs. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the rest of the broken tab on the headlamp housing.

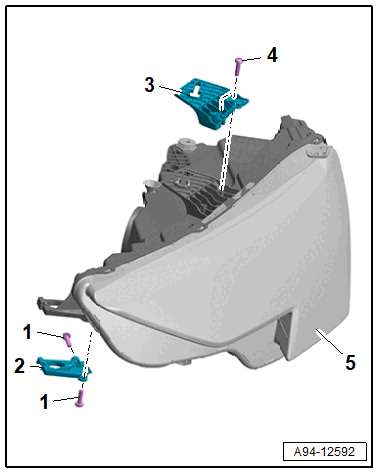

-- Attach the mounting tabs -2 and 3- from the repair kit at the headlamp housing -5- and install using the bolts -1 and 4-.
Tightening Specifications
- Refer to OVERVIEW - HEADLAMPS
