Height Adjustment at Hinge:
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

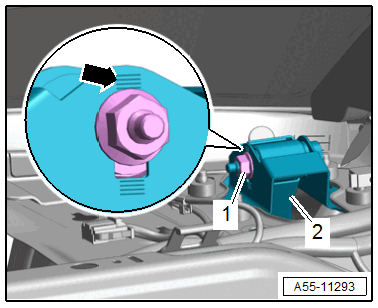

-- Loosen the nut -1-.
-- Adjust the height of the rear lid at the hinge -2-.
- Use the markings on the mounting bracket -arrow- to adjust the height.
-- Tighten the nut.
Tightening Specifications
- Refer to OVERVIEW - REAR LID, SEDAN
