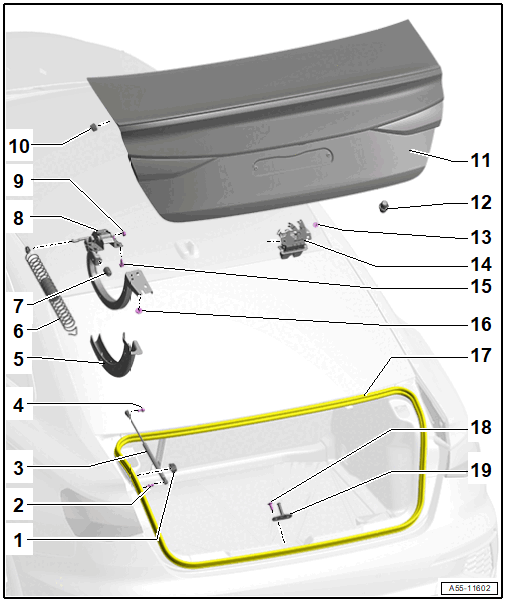

Overview - Rear Lid, Sedan
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Stop
- On the body side
- Removing and installing. Refer to ADJUSTING BUFFER STOP, REMOVING AND INSTALLING .
- Ball Pin
- 21 Nm
- Gas-Filled Strut
- Only on the left side of the vehicle
- Removing and installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Ball Pin
- 21 Nm
- Rear Lid Hinge Trim Panel
- Removing and Installing. Refer to OVERVIEW - REAR LID LOWER TRIM PANEL .
- Tension Spring
- Quantity: 2
- Removing and installing. Refer to TENSION SPRING, REMOVING AND INSTALLING .
- Stop Buffer
- For the rear lid hinge
- Hinge
- Removing and installing. Refer to HINGES, REMOVING AND INSTALLING, SEDAN .
- Nut
- 23 Nm
- Stop
- On the lid side
- Removing and installing. Refer to ADJUSTING BUFFER STOP, REMOVING AND INSTALLING .
- Rear Lid
- Removing and installing. Refer to REAR LID, REMOVING AND INSTALLING, SEDAN .
- Adjusting. Refer to REAR LID, ADJUSTING .
- Adjusting Buffer
- Removing and installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING, SEDAN .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Nut
- Quantity: 2
- 21 Nm
- Rear Lid Lock Unit -VX25-
- With integrated Rear Lid Central Locking System Motor -V53-, Rear Lid Alarm Switch -F123-, Rear Lid Lock Cylinder/Anti-Theft Alarm/Central Locking Contact Switch -F124-
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 23 Nm
- Nut
- Quantity: 2
- 23 Nm
- Rear Lid Seal
- Removing and installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING, SEDAN .
- Bolt
- Quantity: 2
- 21 Nm
- Striker
- Removing and installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER, SPORTBACK .
