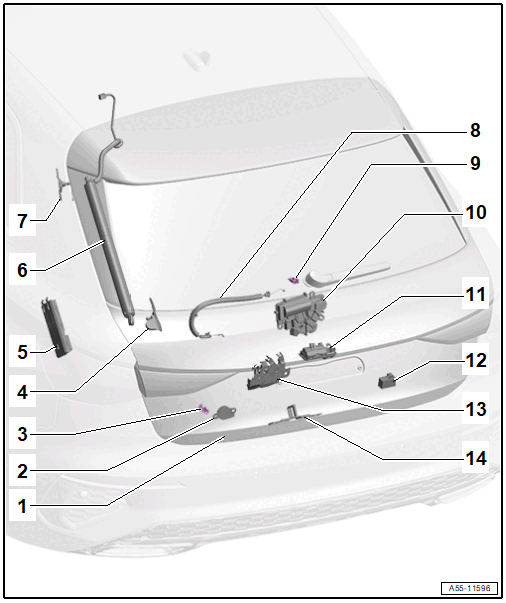

Overview - Electric Rear Lid Release
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Lid
- Overview. Refer to OVERVIEW - REAR LID .
- Rear Lid Warning Buzzer -H32-
- Removing and Installing. Refer to REAR LID WARNING BUZZER -H32-, REMOVING AND INSTALLING .
- Expanding Clip
- Quantity: 2
- Mount
- With ball pin
- Rear Lid Control Module -J605-
- Removing and installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Rear Lid Motor
- Left: Rear Lid Drive Unit -VX69- with integrated Rear Lid Motor 1 -V444- and Sensor in Rear Lid Motor 1 -G745-
- Right: Rear Lid Drive Unit 2 -VX77- with integrated Rear Lid Motor 2 - V445- and Sensor in Rear Lid Motor 2 -G746-
- Removing and installing. Refer to Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, ADAPTING .
- Mount
- With ball pin
- Closing Assist Release Cable
- Removing and installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
- Locking Element
- For the closing assist
- Rear Lid Closing Aid -VX16-
- Removing and installing. Refer to Rear Lid Closing Aid -VX16-, REMOVING AND INSTALLING .
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Rear Lid Control Head -EX58-
- With integrated Rear Lid Lock Button in Luggage Compartment -E406-, Locking Mechanism Button in the Rear Lid -E806-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Rear Lid Lock Unit -VX25-
- Overview. Refer to OVERVIEW - REAR LID .
- Striker
- Overview. Refer to OVERVIEW - REAR LID .
