Overview - Release Cable: Overview
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

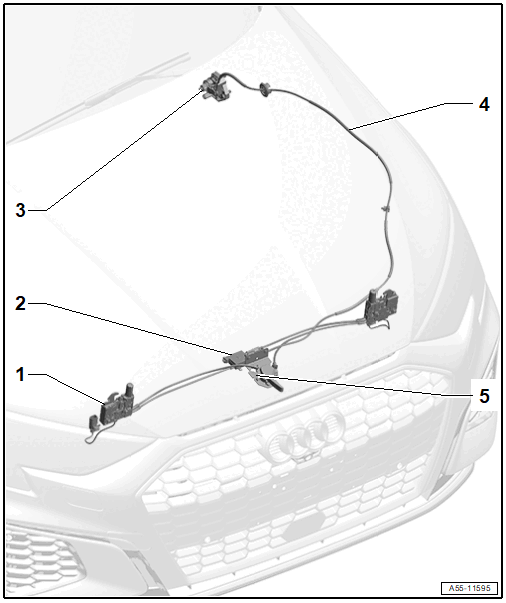

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Hood Latch
- Overview. Refer to Overview - Release at the hood latch .
- Coupling with Release Cables
- For the hood latch
- Overview. Refer to Overview - Release at the hood latch .
- Mounting Bracket
- With hood latch operating lever
- Overview. Refer to Overview - Release in Vehicle Interior .
- Release Cable
- For the hood latch
- Overview. Refer to Overview - Release in Vehicle Interior .
- Mounting Bracket with Release Cable
- With hook operating lever
- Overview. Refer to Overview - Release at the hood latch .
