Side and Length Adjustment at Hinge:
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

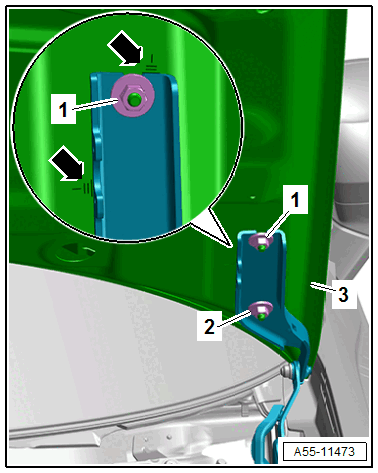

-- Loosen the nuts -1 and 2-.
-- Align the hood -3- sideways and lengthwise according to the marks -arrows-.
-- Tighten the nuts.
Tightening Specifications
- Refer to OVERVIEW - HOOD
