Side Adjustment at Striker:

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

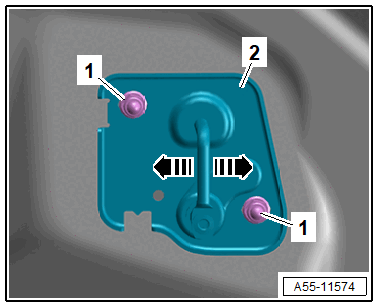

GWWA55-11574Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nuts -1-.

-- Move the striker -2- -arrows-.

-- Tighten the nuts.

Tightening Specifications
