Bumper Cover, Adjusting: Notes
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Depending on the equipment version, the following additional work must be performed. Refer to Depending on the version, the following additional work is required: .
Procedure
- Gap dimensions. Refer to ADJUSTMENT DIMENSIONS .
-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

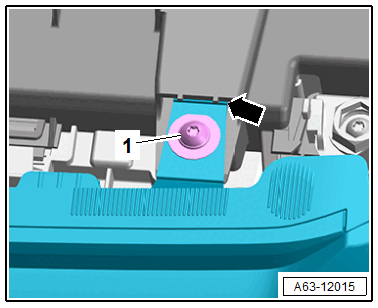

-- Loosen the bolts -1-.
-- Adjust the bumper cover lengthwise according to the markings -arrow-.
-- Tighten the bolts.
-- Check the gap dimension for evenness, and repeat the adjustment if necessary.
