Adjustment Dimensions

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

TIP:

Gap dimensions apply to the specified areas.

Courtesy of AUDI OF AMERICA, LLC

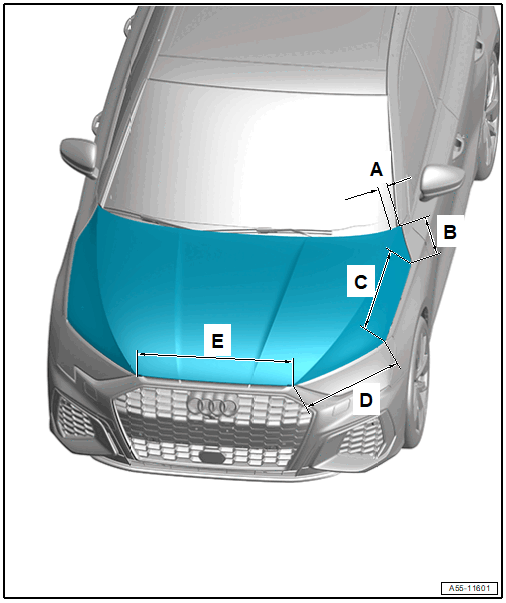

A - Hood to A-Pillar
- Gap dimension = 2.0 mm
B - Hood to Fender
- Gap dimension = 3.6 mm
C - Hood to Fender
- Gap dimension = 2.9 mm
D - Hood to Headlamp
- Gap dimension = 7.0 mm
E - Hood to Radiator Grille
- Gap dimension = 5.0 mm
