Component Location Overview - Abs/Esp
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

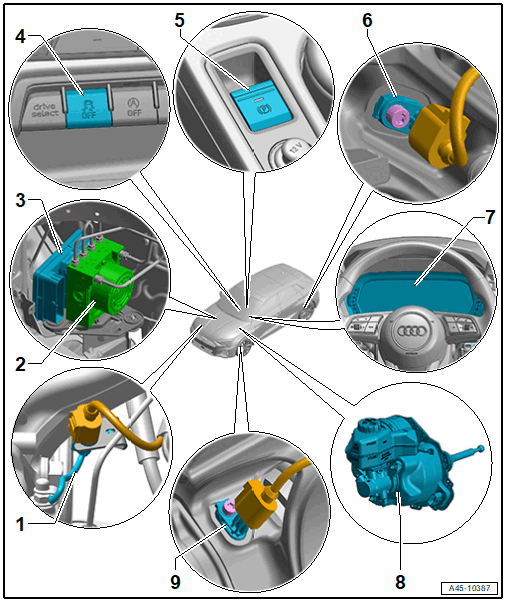

- Brake Pad Wear Sensor
- Right Front Brake Pad Wear Sensor -G35-
- Left Front Brake Pad Wear Sensor -G34- (depending on the model)
- Left Rear Brake Pad Wear Sensor -G36- (installed depending on the model)
- ABS Hydraulic Unit -N55-
- Component location: in the right rear engine compartment
- with
- Brake Pressure Sensor 1 -G201-
- ABS Hydraulic Pump -V64-
- Valve block with intake and exhaust valve
- The components cannot be replaced separately.
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- ABS Control Module -J104-
- Component location: in the right rear engine compartment
- with
- Transverse Acceleration Sensor -G200-
- Rotation Rate Sensor -G202-
- Longitudinal Acceleration Sensor -G251-
- Electromechanical Parking Brake Control Module -J540-
- The components cannot be replaced separately.
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- ASR/ESP Button -E256-
- In the Control Unit 1 for Driving and Convenience Functions -E791-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- Parking Brake Button -EX12-
- with
- Electromechanical Parking Brake Button -E538-
- Electromechanical Parking Brake Indicator Lamp -K213-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- with
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44-
- Left Rear ABS Wheel Speed Sensor -G46-
- Check using the Vehicle Diagnostic Tester.
- Refer to OVERVIEW - REAR AXLE SPEED SENSOR
- Instrument Cluster -KX2-
- with
- ABS Indicator Lamp -K47-
- Brake System Indicator Lamp -K118-
- Parking Brake Indicator Lamp -K139-
- The indicator lamps cannot be replaced separately
- Refer to OVERVIEW - INSTRUMENT CLUSTER .
- with
- Brake Booster -NX6-
- with
- Brake Pedal Position Sensor -G100-
- Brake Pedal Position Sensor 2 -G836-
- Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER
- with
- Front Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45-
- Left Front ABS Wheel Speed Sensor -G47-
- Check using the Vehicle Diagnostic Tester.
- Refer to OVERVIEW - FRONT AXLE SPEED SENSOR
