Multi-Link Rear Axle Camber, Adjusting

Special tools and workshop equipment required

• Shock Absorber Set - Socket:T10001/3  from the Shock Absorber Set:T10001
  Fig 1: 18 mm socket from the Shock Absorber Set

  Courtesy of AUDI OF AMERICA, LLC
• Insert Tool - 18mm:T10179
  Fig 2: Insert Tool - 18mm

  Courtesy of AUDI OF AMERICA, LLC

Procedure

Courtesy of AUDI OF AMERICA, LLC

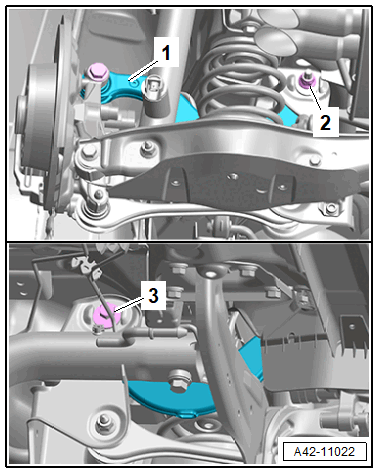

-- Remove the nut -2- on the upper transverse link threaded connection -1- from the subframe and loosely install a new nut.

-- Adjust the camber by rotating the eccentric bolt -3-.

TIP:

To turn the eccentric bolt -3-, turn the hex head at the "top of the bolt".

-- Use the Shock Absorber Set - Socket:T10001/3  from the Shock Absorber Set:T10001  -1- as shown.

Courtesy of AUDI OF AMERICA, LLC

TIP:

The maximum adjustment range is 90° to left or right of center position.

-- Tighten the nut -2- using the Insert Tool - 18mm:T10179  .

Courtesy of AUDI OF AMERICA, LLC

-- Use the Insert Tool - 18mm:T10179  -1- as shown.

Courtesy of AUDI OF AMERICA, LLC

-- After the nut is tightened, check the camber value once more. Refer to AXLE ALIGNMENT SPECIFIED VALUES .

Tightening Specifications

• Refer to OVERVIEW - TRANSVERSE LINK
