Overview - Cylinder Block, Belt Pulley Side

Fig 1: Exploded View Of Cylinder Block, Belt Pulley Side

Courtesy of AUDI OF AMERICA, LLC

1. Ribbed Belt
   • There are different versions. Refer to the Parts Information for the allocation.
   • Check for wear
   • Do not kink
   • Ribbed belt routing. Refer to Fig 2.
   • Before removing, mark the running direction using chalk or a felt-tip pen.
   • Removing and Installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
   • When installing, make sure it is seated correctly on the ribbed belt pulleys
2. Bolt

   Vehicle with generator

   • Replace after removing
   • 20 Nm +90°

     Vehicle with starter generator

   • 40 Nm
3. Bolt
   • There are different versions. Refer to the Parts Information for the allocation.
   • Replace after removing

     Vehicle with generator

   • 100 Nm +180°

     Vehicle with starter generator

   • 240 Nm +180°
4. O-Ring
   • Included in a delivery package  OVERVIEW - CYLINDER BLOCK, BELT PULLEY SIDE; cannot be delivered separately
5. Vibration Damper
   • With the ribbed belt pulley
   • There are different versions. Refer to the Parts Information for the allocation.
   • Removing and Installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
6. Sub-Assembly Bracket
   • With oil filter housing and engine oil cooler
   • Removing and installing the sub-assembly bracket. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING .
   • Removing and installing the engine oil cooler. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .
7. Seal
   • Replace after removing
8. O-Ring
   • Replace after removing
   • Coat with coolant
9. Connection
10. O-Ring
    • Replace after removing
    • Coat with coolant
11. Bolt
    • Replace after removing
    • Tightening Specifications and Sequence. Refer to Fig 4.
12. Generator
    • There are different versions. Refer to the Parts Information for the allocation.
    • Overview. Refer to OVERVIEW - GENERATOR .
13. Bolt
    • Tightening specification. Refer to OVERVIEW - GENERATOR .
14. A/C Compressor
    • Removing and Installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
15. Bolt
    • Tightening specification. Refer to OVERVIEW - A/C COMPRESSOR .
16. Alignment Sleeves
17. Tensioner
    • For the ribbed belt
    • There are different versions. Refer to the Parts Information for the allocation.
    • Removing and Installing. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
    • Vehicle with starter generator. Refer to RIBBED BELT TENSIONER, ESTABLISHING ASSEMBLY CONDITION .

Ribbed belt routing - Generator C

Fig 2: Ribbed Belt Routing - Generator

Courtesy of AUDI OF AMERICA, LLC

1. Vibration Damper
2. Ribbed Belt Tensioner
3. Generator
4. A/C Compressor

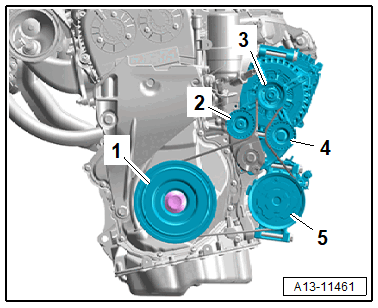

Ribbed belt routing - Starter GeneratorC29

Fig 3: Ribbed belt routing - Starter Generator -C29-

Courtesy of AUDI OF AMERICA, LLC

1. Vibration Damper
2. Idler Pulley Tensioner
3. Starter Generator
4. Idler Pulley Tensioner
5. A/C Compressor

Sub-Assembly Bracket - Tightening Specifications and Sequence

Fig 4: Sub-Assembly Bracket - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

• Replace bolts that were tightened with an additional turn after removing them.

-- Mount the sub-assembly bracket and then install the bolts -4- first.

-- Tighten the bolts -1 to 5- in stages in the sequence shown.
