Ribbed Belt TENSIONER, Establishing Assembly Condition

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Locking Pin:T10060A

Courtesy of AUDI OF AMERICA, LLC
Adapter :T40263/1 , not illustrated

Procedure

Tensioner removed. Refer to RIBBED BELT TENSIONING DAMPER, REMOVING AND INSTALLING, VEHICLE WITH STARTER GENERATOR .

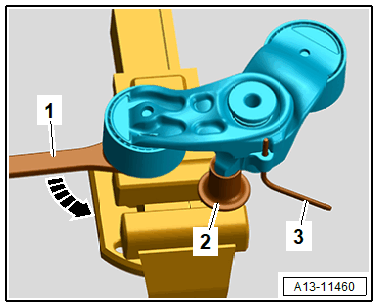

-- Tighten the Adapter :T40263/1 -item 2- into the vise.

Courtesy of AUDI OF AMERICA, LLC

-- Align the tensioner to the adapter as shown.

-- To tension, position the wrench -item 1- to the tensioner and turn it counter-clockwise -arrow-.

-- Lock the tensioner using the Locking Pin:T10060A -item 3-.
