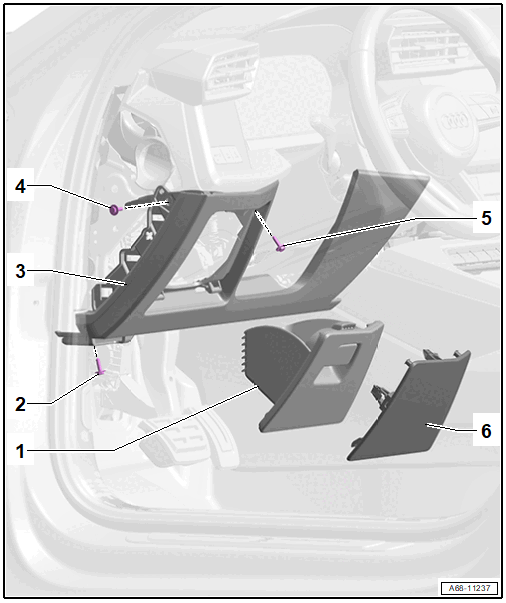

Overview - Instrument Panel Cover, Driver Side

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

Courtesy of AUDI OF AMERICA, LLC

1. Storage Compartment
   • Equipped on some models
   • Refer to DRIVER SIDE INSTRUMENT PANEL COVER/STORAGE COMPARTMENT, REMOVING AND INSTALLING
2. Bolt
   • Quantity: 2
   • 3 Nm
3. Driver Side Instrument Panel Cover
   • Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING
4. Bolt
   • 3 Nm
5. Bolt
   • 3 Nm
6. Cap
   • Equipped on some models
   • Refer to DRIVER SIDE INSTRUMENT PANEL COVER/STORAGE COMPARTMENT, REMOVING AND INSTALLING
