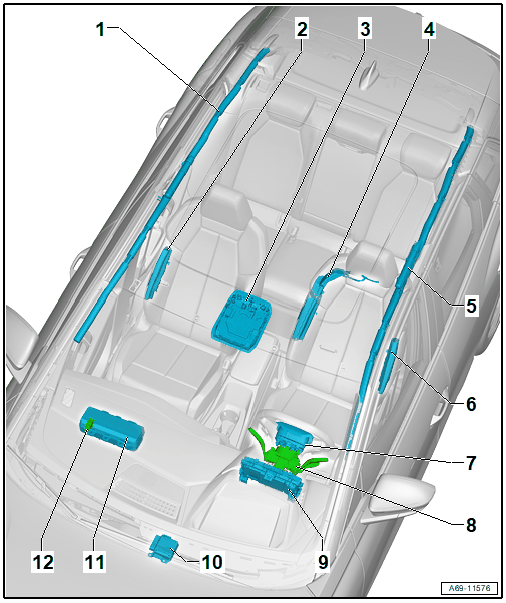

Component Location Overview - Airbag System

The overview shows a LHD vehicle as an example.

Courtesy of AUDI OF AMERICA, LLC

1. Front Passenger Head Curtain Airbag
   • LHD: with Front Passenger Head Curtain Airbag Igniter -N252-
   • RHD: with Driver Head Curtain Airbag Igniter -N251-
   • Refer to Overview - Head Curtain Airbag  .
   • Refer to Head Curtain Airbag with Igniter, Removing and Installing  .
2. Front Passenger Front Thorax Airbag
   • LHD: with Front Passenger Thorax Airbag Igniter -N200-
   • RHD: with Driver Thorax Airbag Igniter -N199-
   • Refer to Overview - Front Thorax Airbag, Inner Side  .
   • Refer to INNER THORAX AIRBAG, REMOVING AND INSTALLING  .
3. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Contained in Front Roof Module -WX3-
   • Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
4. Driver Side Front Inner Thorax Airbag with Driver Side Front Center Airbag Igniter for Occupant Contact Protection - N737-
   • Refer to Overview - Front Thorax Airbag, Inner Side  .
   • Refer to Inner Thorax Airbag, Removing and Installing  .
5. Driver Head Curtain Airbag
   • LHD: with Driver Head Curtain Airbag Igniter -N251-
   • RHD: with Front Passenger Head Curtain Airbag Igniter -N252-
   • Refer to Overview - Head Curtain Airbag  .
   • Refer to Head Curtain Airbag with Igniter, Removing and Installing  .
6. Front Thorax Airbag on Driver Side
   • LHD: with Driver Thorax Airbag Igniter -N199-
   • RHD: with Front Passenger Thorax Airbag Igniter -N200-
   • Refer to Overview - Front Thorax Airbag, Inner Side  .
   • Refer to INNER THORAX AIRBAG, REMOVING AND INSTALLING  .
7. Airbag Unit with Driver Airbag Igniter -N95-
   • Refer to OVERVIEW - DRIVER SIDE AIRBAG  .
   • Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING  .
8. Steering Column Electronics Control Module -J527-
   • Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
9. Instrument Cluster -KX2-
   • With Airbag Indicator Lamp -K75-
   • Refer to OVERVIEW - INSTRUMENT CLUSTER .
10. Airbag Control Module -J234-
    • Refer to Overview - Airbag Control Module  .
    • Refer to Airbag Control Module J234, Removing and Installing  .
11. Front Passenger Side Airbag Unit
    • With the Front Passenger Airbag Igniter 1 -N131-
    • With Front Passenger Airbag Unit - NX3- including Front Passenger Airbag Igniter 1 - N131- and Front Passenger Airbag Igniter 2 - N132-
    • Refer to Overview - Front Passenger Airbag  .
    • Refer to Front Passenger Airbag Unit with Igniter, Removing and Installing  .
12. Front Passenger Airbag Deactivation Key Switch -E224-
    • Refer to the appropriate Service Information .
