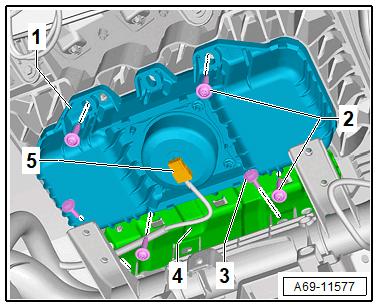

Overview - Front Passenger Airbag

Courtesy of AUDI OF AMERICA, LLC

Front Passenger Airbag with
- With the Front Passenger Airbag Igniter 1 -N131-
- With Front Passenger Airbag Unit - NX3- including Front Passenger Airbag Igniter 1 - N131- and Front Passenger Airbag Igniter 2 - N132-
- Refer to Front Passenger Airbag Unit with Igniter, Removing and Installing .
Bolt
- For the front passenger airbag to the instrument panel
- Quantity: 4
- Replace after removing
- 8 Nm
Bolt
- For the front passenger side airbag bracket to the instrument panel crossmember
- Quantity: 2
- 3 Nm
Front Passenger Side Airbag Bracket
Connector
- Equipped on some models
