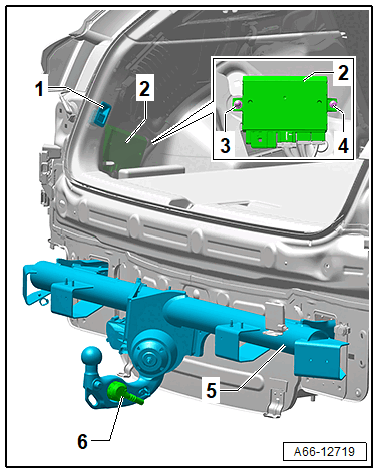

Overview - Trailer Hitch

GWWA66-12719

Courtesy of AUDI OF AMERICA, LLC

Power Pivoting Trailer Hitch Button -E474-
- Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
Towing Recognition Control Module -J345-
- Refer to Towing Recognition Control Module J345, Removing and Installing .
Nut
- 6 Nm
Bolt
- 2.5 Nm
Bumper Carrier
- With trailer hitch
- Refer to Overview - Bumper Carrier .
Socket
- Refer to TRAILER HITCH .
