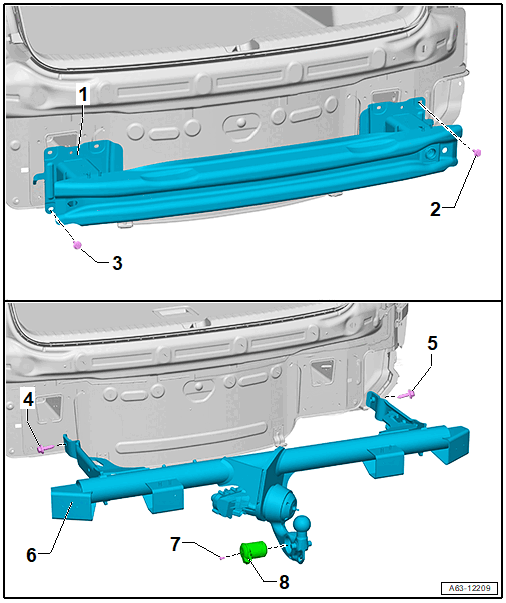

Overview - Bumper Carrier

Courtesy of AUDI OF AMERICA, LLC

Bumper Carrier
- For vehicles without a trailer hitch
- Refer to Bumper Carrier, Removing and Installing .
Bolt
- Quantity: 4
- 20 Nm
Bolt
- Quantity: 3
- 20 Nm
Bolt
- Quantity: 2
- Replace after removing
- 50 Nm + 180°
Bolt
- Quantity: 2
- Replace after removing
- 50 Nm + 180°
Bumper Carrier
- For vehicles with a trailer hitch
- Refer to Bumper Carrier, Removing and Installing .
Bolt
- Quantity: 2
- Refer to TRAILER HITCH .
Socket
- Refer to TRAILER HITCH .
