Electric Drive Control Module On Rear Axle J1235, Removing And Installing, Base Model: Removing

If the Electric Drive Control Module on Rear Axle -J1235- is replaced, the test plan for replacing the control module must be performed.

-- Perform the "Control Module, Replacing" function using the Vehicle Diagnostic Tester . Refer to Diagnostic Entries .

Continuation

-- Install the noise insulation on the rear motor.

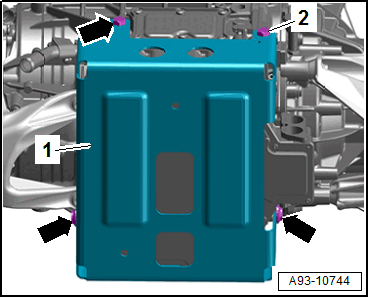

-- Remove the bolts -arrows- and -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the protective housing -1-.

CAUTION:

High voltage increases the risk of fatal injury

Electrocution can cause severe bodily or fatal injury.

- Have a high-voltage technician or a high-voltage expert de-energize the high-voltage system.

-- If the contact protection is remove from on high-voltage components, an additional de-energizing must be performed.

-- Remove the bolts in the sequence -6- through -1- and remove the cover.

Fig 1: Bolts for High-Voltage Cable Cover - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Perform an additional de-energizing.

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

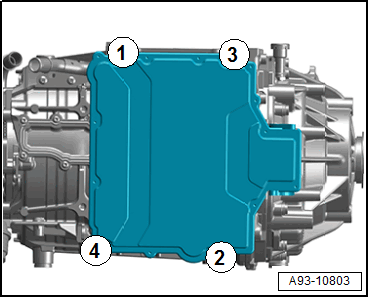

Fig 2: Electric Drive Control Module on Rear Axle J1235/J1236 - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts in sequence -4- through -1-.

-- Remove the Electric Drive Control Module on Rear Axle -J1235-.
