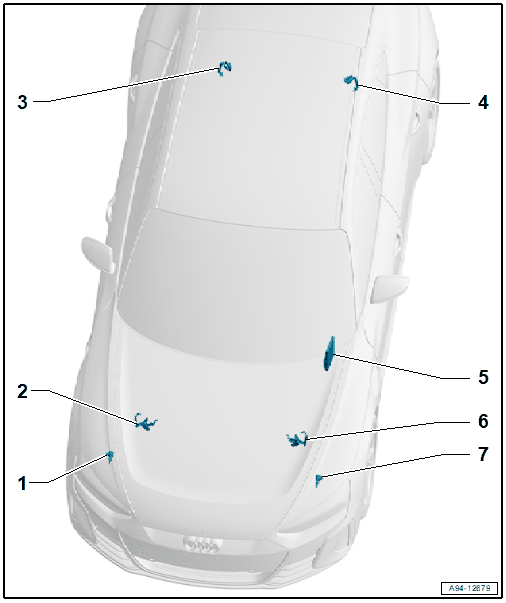

Component Location Overview - Automatic Headlamp Range Control

Courtesy of AUDI OF AMERICA, LLC

Right Headlamp Beam Adjustment Motor -V49-
- Refer to Left and Right Headlamp Beam Adjustment Motor V48/V49, Removing and Installing .
Right Front Level Control System Sensor -G289-
- On the control arm in the front
- Refer to LEFT AND RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR G78/G289, REMOVING AND INSTALLING .
Right Rear Level Control System Sensor -G77-
- On the rear control arm
- Refer to LEFT AND RIGHT REAR LEVEL CONTROL SYSTEM SENSOR G76/G77, REMOVING AND INSTALLING .
Left Rear Level Control System Sensor -G76-
- On the rear control arm
- Refer to LEFT AND RIGHT REAR LEVEL CONTROL SYSTEM SENSOR G76/G77, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- RHD: is a mirror image
- Refer to Component Location Overview - Control Modules .
Left Front Level Control System Sensor -G78-
- On the control arm in the front
- Refer to LEFT AND RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR G78/G289, REMOVING AND INSTALLING .
Left Headlamp Beam Adjustment Motor -V48-
- Refer to Left and Right Headlamp Beam Adjustment Motor V48/V49, Removing and Installing .
