Component Location Overview - Control Modules

Courtesy of AUDI OF AMERICA, LLC

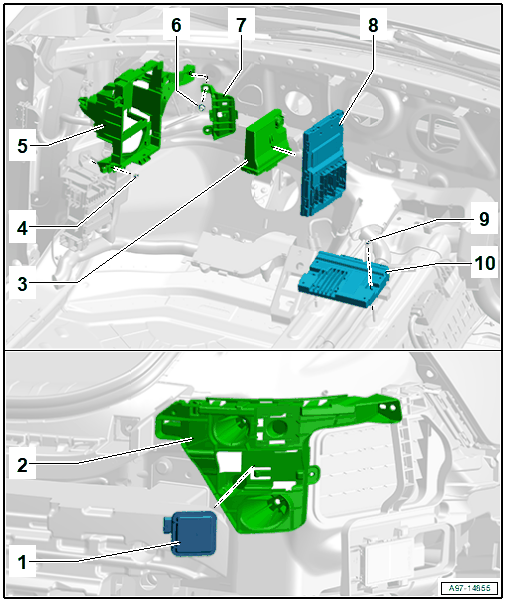

1. Garage Door Opener Control Module -J530-
   • Refer to Garage Door Opener Control Module, Removing and Installing  .
2. Bumper Cover Side Mount
3. Thermal Management Control Module -J1024-
   • RHD: is a mirror image
4. Nut
5. Mount for the Vehicle Electrical System Control Module -J519-.
   • Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519 MOUNT, REMOVING AND INSTALLING
6. Nut
7. Mount for the Radio-Controlled Parking Control Module -J1182-
   • RHD: is a mirror image
8. Vehicle Electrical System Control Module -J519-
   • RHD: is a mirror image
   • Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519, REMOVING AND INSTALLING
9. Nut
10. Data Bus on Board Diagnostic Interface -J533-
    • Refer to Data Bus on Board Diagnostic Interface J533, Removing and Installing  .
