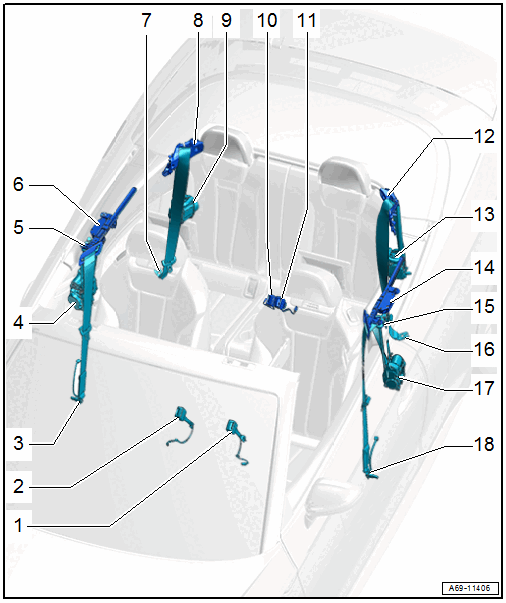

Component Location Overview - Seat Belts And Mounting Points, A5 Cabriolet
WARNING: This page is about a different variant/trim than selected.
- Front Seat Belt Latch
- With Driver Seat Belt Switch -E24-
- Refer to OVERVIEW - FRONT SEAT BELT LATCH
- Front Seat Belt Latch
- With Front Passenger Seat Belt Switch -E25-
- Refer to OVERVIEW - FRONT SEAT BELT LATCH
- Front Belt End Fitting
- Automatic Belt Retractor
- For the front three-point seat belt
- with:
- Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Front Passenger Belt Force Limiter -G552-
- Equipment versions with electric seat belt tensioner: Right Front Seat Belt Tensioner Control Module -J855-
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 CABRIOLET
- Front Seat Belt Relay
- Front Passenger Seat Belt Positioning Motor -V605-
- Rear Belt End Fitting
- Rear Seat Belt Guide
- Automatic Belt Retractor
- For the rear three-point seat belt
- With Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT, A5 CABRIOLET
- Rear Seat Belt Latch
- With Passenger Side Rear Seat Belt Switch -E259-
- Refer to OVERVIEW - REAR SEAT BELT LATCH, A5 CABRIOLET
- Rear Seat Belt Latch
- With Driver Side Rear Seat Belt Switch -E258-
- Refer to OVERVIEW - REAR SEAT BELT LATCH, A5 CABRIOLET
- Rear Seat Belt Guide
- Automatic Belt Retractor
- For the rear three-point seat belt
- with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT, A5 CABRIOLET
- Driver Seat Belt Positioning Motor -V604-
- Front Seat Belt Relay
- Rear Belt End Fitting
- Automatic Belt Retractor
- For the front three-point seat belt
- with:
- Driver Seat Belt Tensioner Igniter 1 -N153-
- Driver Belt Force Limiter -G551-
- Equipment version with electric seat belt tensioner: Left Front Seat Belt Tensioner Control Module -J854-
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 CABRIOLET
- Front Belt End Fitting
