Overview - Outer Rear Three-Point Seat Belt, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

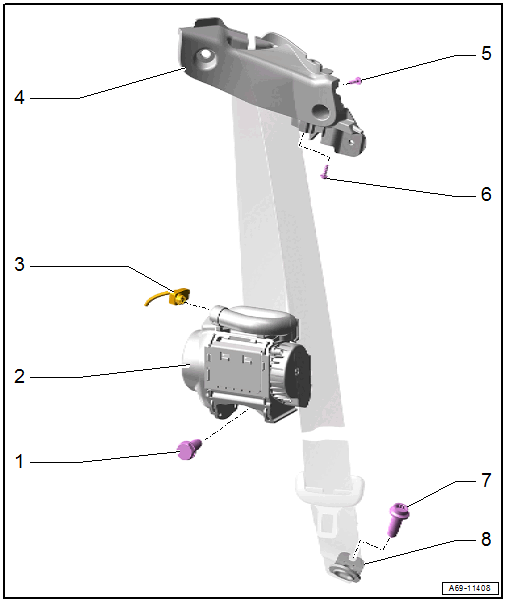

Fig 1: Exploded View Of Outer Rear Three-Point Seat Belt, A5 Cabriolet

Courtesy of AUDI

Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 45 Nm
Automatic Belt Retractor
- Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING, A5 CABRIOLET
Connector
Seat Belt Guide
- Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, A5 CABRIOLET
Bolt
- 1.5 Nm
Bolt
- 1.5 Nm
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 45 Nm
Belt End Fitting
- Refer to OUTER REAR BELT END FITTING, REMOVING AND INSTALLING, A5 CABRIOLET
