Component Location Overview - Alcohol Interlock System Interface
WARNING: This page is about a different variant/trim than selected.

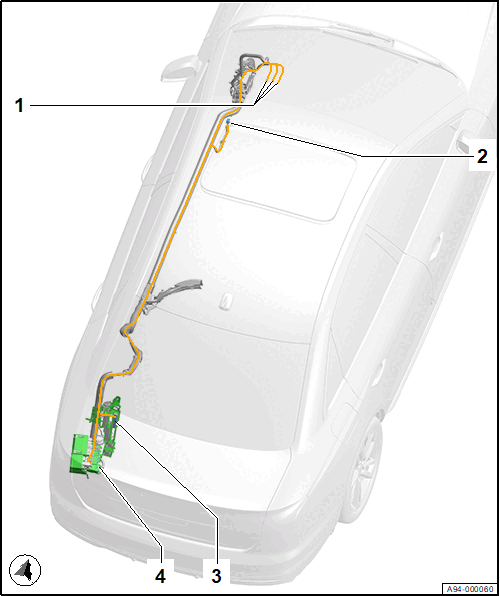

LHD Vehicle
- Coupling Point for Alcohol Interlock System
- In the glove compartment
- Refer to ALCOHOL INTERLOCK SYSTEM - INSTALLATION INFORMATION .
- Refer to ALCOHOL INTERLOCK SYSTEM, INITIAL OPERATION .
- Refer to ALCOHOL INTERLOCK SYSTEM, REMOVAL .
- Connecting and securing according to the manufacturer information
- Ground Connection on the Right A-Pillar
- Relay and Fuse Panel 2 -SR2-
- On the left side of the luggage compartment
- Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .
- Comfort System Central Control Module -J393-
- With alcohol interlock system interface
- Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .

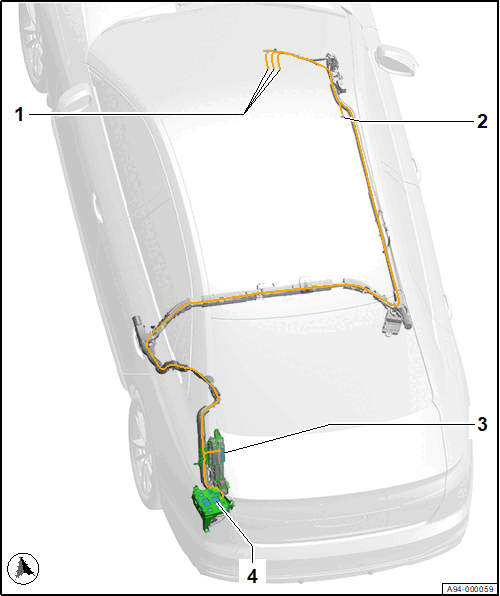

RHD Vehicles
- Coupling Point for Alcohol Interlock System
- In the glove compartment
- Refer to ALCOHOL INTERLOCK SYSTEM - INSTALLATION INFORMATION .
- Refer to ALCOHOL INTERLOCK SYSTEM, INITIAL OPERATION .
- Refer to ALCOHOL INTERLOCK SYSTEM, REMOVAL .
- Connecting and securing according to the manufacturer information
- Ground Connection on the Left A-Pillar
- Relay and Fuse Panel 2 -SR2-
- On the left side of the luggage compartment
- Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .
- Comfort System Central Control Module -J393-
- With alcohol interlock system interface
- Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
- Coupling Point for Alcohol Interlock System
- Positive cable terminal 30
- Ground wire terminal 31
- LIN bus wire
- Control Module
- With alcohol interlock system interface (LIN bus wire)
- Ground Connection
- Ground wire terminal 31 for alcohol interlock system
- Fuse Panel
- Positive cable terminal 30 for alcohol interlock system
