Required Tools And Materials For Removal And Installation

Special tools and workshop equipment required

• Double Suction Lifter:V.A.G 1344
  Fig 1: Double Suction Lifter

  Courtesy of AUDI OF AMERICA, LLC
• Window Removal Set :VAS 861 001A
  Fig 2: Idenitying Window Removal Set VAS861001A

  Courtesy of AUDI OF AMERICA, LLC
• Window Removal Set - Cutting Cord:VAS 861 001/1A
• Window Cutter:V.A.G 1561A
  Fig 3: Identifying Window Cutter VAG 1561A

  Courtesy of AUDI OF AMERICA, LLC
• Blade - serrated 28:V.A.G 1561/28

  Courtesy of AUDI OF AMERICA, LLC

• Blade - serrated 25.5:V.A.G 1561/29

  Courtesy of AUDI OF AMERICA, LLC

• Blade - serrated 38:V.A.G 1561/30

  Courtesy of AUDI OF AMERICA, LLC

• Window Cutter - Scraper (2 pc.):V.A.G 1561/7+8
  Fig 4: Identifying Scraper (15+25 mm) V. A. G 1561/7+8

  Courtesy of AUDI OF AMERICA, LLC

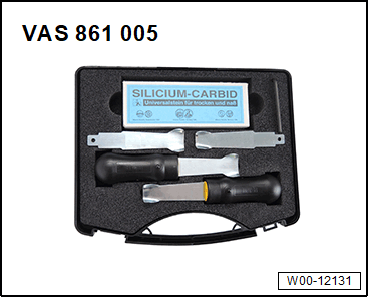

• Scraper Set:VAS 861 005

  Courtesy of AUDI OF AMERICA, LLC

• Double Cartridge Adhesive Gun:VAS 5237
  Fig 5: Double Cartridge Adhesive Gun (VAS5237)

  Courtesy of AUDI OF AMERICA, LLC
• Cartridge Heater:V.A.G 1939A
  Fig 6: Cartridge Heater

  Courtesy of AUDI OF AMERICA, LLC
• Wedge Set:T10383
  Fig 7: Identifying Wedge Set

  Courtesy of AUDI OF AMERICA, LLC

Materials

• Two-Part Window Adhesive. Refer to the appropriate Electronic Parts Information,  REQUIRED TOOLS AND MATERIALS FOR REMOVAL AND INSTALLATION.
• Primer. Refer to the appropriate Electronic Parts Information.
• Applicator. Refer to the appropriate Electronic Parts Information
• Cleaning Solution. Refer to the appropriate Electronic Parts Information
• Adhesive Remover. Refer to the appropriate Electronic Parts Information
• Reinforced Adhesive Tape

1. Observe the minimum curing time. Refer to MINIMUM CURING TIME FOR BONDED SLIDING SUNROOF .

1. To process this material, the Double Cartridge Adhesive Gun:VAS 5237  must be used.
