Differential Lock Control Module -J187-, REMOVING AND INSTALLING, AUDI A4 AND A5 WITH "quattro sport"

• The ignition is off.

-- Remove the luggage compartment floor covering.

-- Remove the rear panel sill frame. Refer to the appropriate Service Information .

-- Unclip the Differential Lock Control Module -J187- -1- from the bracket.

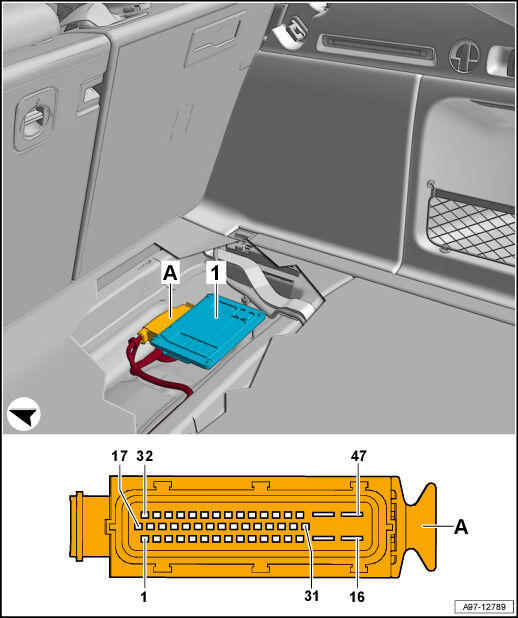

Fig 1: Differential Lock Control Module -J187-, Vehicles with Final Drive 0D3 "quattro sport"

Courtesy of AUDI OF AMERICA, LLC

-- Release the connector -A- and disconnect it from the Differential Lock Control Module -J187-.

-- The Differential Lock Control Module -J187- is installed in the reverse order.

• If the Differential Lock Control Module -J187- was replaced, then additional work is necessary. Refer to ADDITIONAL WORK AFTER REPLACING Differential Lock Control Module -J187- .
