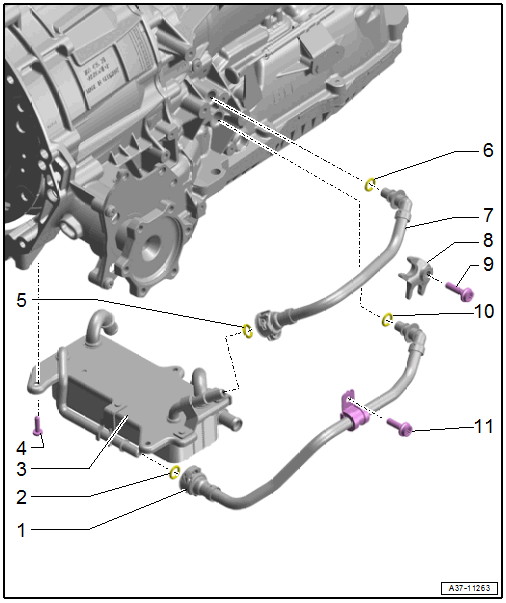

Overview - ATF Circuit, Version 1
WARNING: This page is about a different car, the 2024 Audi S5 and 2023 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- ATF Line
- Cleaning. Refer to Cleaning .
- Install all the way by hand with a new O-ring
- O-Ring
- Replace if the ATF line leaks
- Coat with ATF before installing
- ATF Cooler
- Removing and Installing. Refer to ATF COOLER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- O-Ring
- Replace if the ATF line leaks
- Coat with ATF before installing
- O-Ring
- Replace if the ATF line leaks
- Coat with ATF before installing
- ATF Line
- Cleaning. Refer to Cleaning .
- Install all the way by hand with a new O-ring
- Bracket
- Bolt
- 20 Nm
- O-Ring
- Replace if the ATF line leaks
- Coat with ATF before installing
- Bolt
- 20 Nm
Disconnect the ATF Line
-- Release the clip -1- from the connector coupling -2- in direction of -arrows B- and lift in direction of -arrows A-.
-- Remove the connector coupling.
