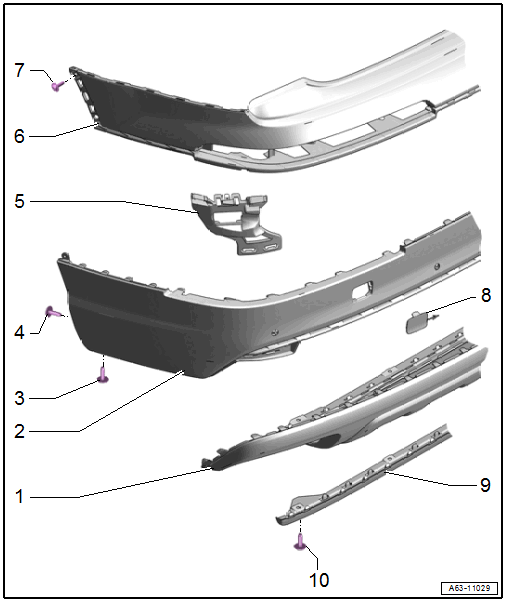

Overview - Bumper Cover, Before Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Overview - Bumper Cover Mount. Refer to OVERVIEW - BUMPER COVER MOUNT
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Bolt
- Quantity: 2
- 2.5 Nm
- Bolt
- 2.5 Nm
- Mount
- for lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2.5 Nm
- Cap
- For the tail lamp bolt
- Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 2.5 Nm
