Overview - Bumper Cover Mount

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

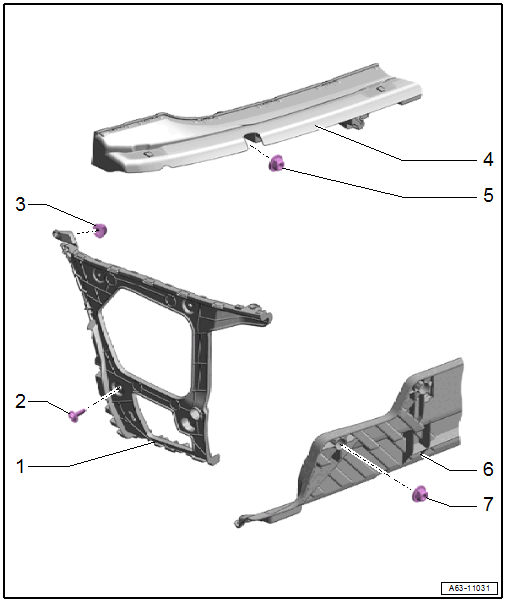

Fig 1: Exploded View Of Bumper Cover Mount

Courtesy of AUDI

Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
Bolt
- Quantity: 4
- Tightening sequence. Refer to Fig 2.
Nut
- Quantity: 2
- 2.5 Nm
Mount
- Center
- For the bumper cover
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Nut
- Quantity: 6
- 2.5 Nm
Lower Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Nut
- Quantity: 4
- 2.5 Nm

Bumper Cover Side Mount - Tightening Specification and Sequence

Fig 2: Bumper Cover Side Mount - Tightening Sequence

Courtesy of AUDI

-- Tighten the bolts in the sequence shown -1 to 4- to 3 Nm.
