Turbocharger, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi A8 Quattro, 2023 Audi A8 Quattro, and 2022 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the crankcase ventilation hose -4- by pressing the release buttons on both sides.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -3-.

-- Remove the bolts -arrows- and push the connection -2- to the left side.

-- Remove the upper air duct pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .

-- Press the release buttons on both sides and disconnect the EVAP system hose -4- (different installation positions).

Courtesy of AUDI OF AMERICA, LLC

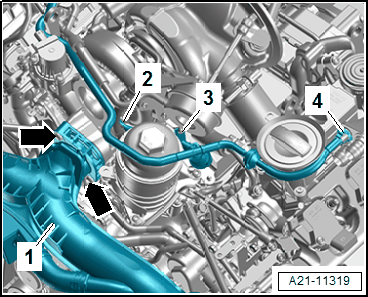

-- Remove the bolts -arrows- for the air guide pipe -1-.

-- Remove the bolt -3- and the line -2- for the EVAP system and move to the side.

All additional procedures are described under: TURBOCHARGER, REMOVING AND INSTALLING .
