Upper Pressure Pipe, Removing And Installing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lock carrier. Refer to LOCK CARRIER, REMOVING AND INSTALLING .

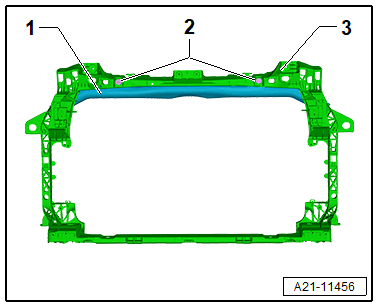

-- Remove the bolts -2-.
-- Remove the pressure pipe -1- from the lock carrier -3-.
Installing
Install in the reverse order of removal while noting the following:
- Secure the hose connections with hose clamps corresponding to the model version. Refer to the Parts Information.
- Used coolant cannot be used again.
-- Fill the coolant. Refer to COOLANT, DRAINING AND FILLING .
Tightening Specifications
- Refer to BODY-SIDE CHARGE AIR SYSTEM
- Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS
- Refer to OVERVIEW - LOCK CARRIER .
