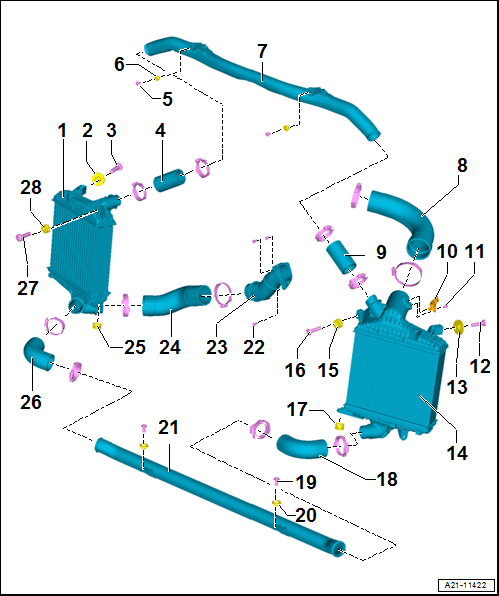

Body-Side Charge Air System
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Right Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- If there are small impressions on the slats, refer to RADIATOR AND CONDENSER ASSEMBLY .
- Adapter Grommet
- Bolt
- 8 Nm
- Air Duct Hose
- Must be free of oil and grease before installing
- Bolt
- 8 Nm
- Quantity: 2
- Spacer
- Quantity: 2
- Upper Pressure Pipe
- Removing and Installing. Refer to PRESSURE PIPE, REMOVING AND INSTALLING .
- Pressure Hose to Throttle Valve
- Refer to OVERVIEW - CHARGE AIR SYSTEM .
- Pressure Hose
- Charge Air Pressure Sensor -G31-
- Removing and Installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Bolt
- 8 Nm
- For the charge air cooler bracket
- Quantity: 3
- Rubber Grommet
- Left Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- If there are small impressions on the slats, refer to RADIATOR AND CONDENSER ASSEMBLY .
- Rubber Grommet
- Bolt
- 8 Nm
- Rubber Grommet
- Pressure Hose
- Bolt
- 8 Nm
- Rubber Grommet
- Lower Pressure Pipe
- Removing and Installing. Refer to PRESSURE PIPE, REMOVING AND INSTALLING .
- Bolt to Turbocharger Pressure Pipe
- 8 Nm
- Quantity: 3
- Lower Air Duct Pipe
- Removing and Installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
- Pressure Hose
- Rubber Grommet
- Pressure Hose
- Bolt
- 8 Nm
- Adapter Grommet
