Rear Seat Belt Guide, Removing And Installing

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pry Lever: 80-200
Trim Removal Wedge: 3409

Second Row Belt in Center, Removing

Courtesy of AUDI OF AMERICA, LLC

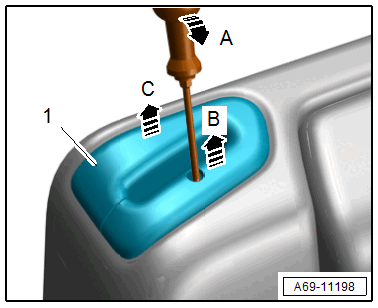

-- Release the tabs with a screwdriver -arrow A-.

-- At the same time, unclip the seat belt guide -1- upward -B and C arrows- using the : 3409 .

-- Open the gap on the belt guide and guide the seat belt webbing out.

Third Row Belt, Removing

Courtesy of AUDI OF AMERICA, LLC

-- North American version: remove the third row rear belt end fitting. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .

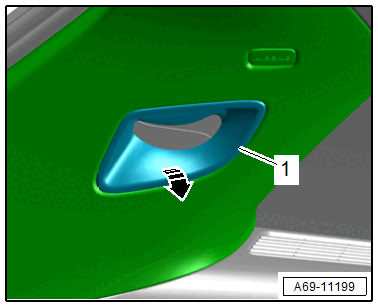

-- Remove the seat belt guide -1- from the D-pillar trim panel -arrow- using the : 80-200 .

-- Disengage the seat belt guide at the D-pillar trim panel, guide the seat belt webbing out and remove.

Installing

Further installation is the reverse order of removal.

Installation instructions: tightening specifications, replacing body parts. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT and OVERVIEW - THIRD ROW THREE-POINT SEAT BELT .
