Rear Seat Belt Latch, Removing And Installing, Second Row
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

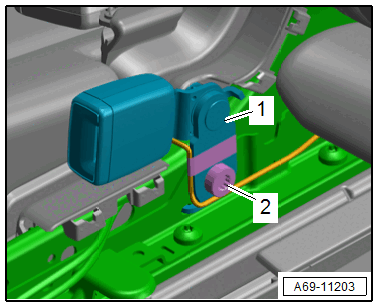

Outer Seat Belt Latch, Removing
-- Remove the second row outer seat pan cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .
-- Remove the tunnel-side seat side trim. Refer to TUNNEL-SIDE SEAT SIDE TRIM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
-- Disconnect and free up the seat belt switch connector.
-- Remove the bolt -2-.
-- Remove the seat belt latch -1-.

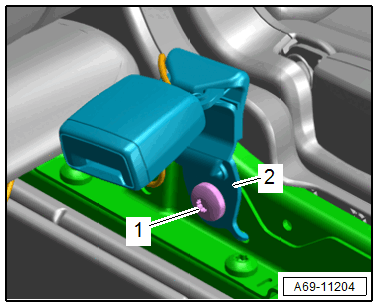

Center Seat Belt Latch, Removing
-- Remove the second row seat pan cushion in the center. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .
-- Disconnect and free up the seat belt switch connector.
-- Remove the bolt -1-.
-- Remove the seat belt latch -2-.
Installing
Install in reverse order of removal.
