Ribbed Belt TENSIONING Damper, Removing And Installing, Vehicles With Starter Generator
After each repair there are two possibilities for the removal of the ribbed belt tensioner:
1. If the ribbed belt is installed:
TIP:
If the ribbed belt tensioner should be replaced a commercially available steel pin (4 mm diameter) can be used for locking the tensioner instead of the Locking Pin: T10060A .
-- Remove the ribbed belt from the tensioner. Refer to RIBBED BELT, REMOVING AND INSTALLING .
2. If no ribbed belt is installed (for example ripped):

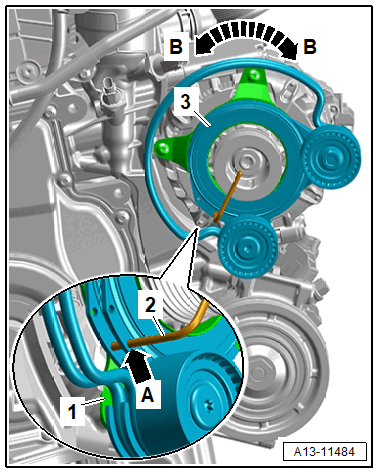

-- Position the ribbed belt tensioner -3- as shown and if necessary for this turn the ribbed belt tensioner by hand -arrow B-.
-- Insert the Locking Pin: T10060A -2- in the lower hole -arrow A- and turn the tensioner farther counter-clockwise -arrow B- until the drift contact the lower mounting tab -1- from the tensioner.

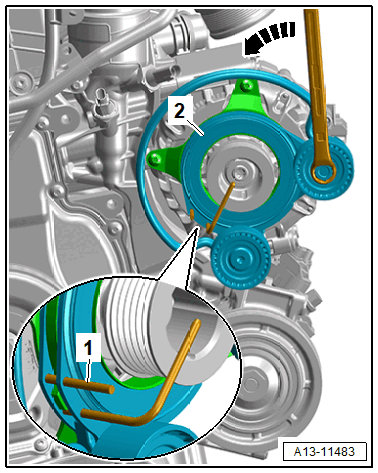

-- Turn the tensioner in the direction of -arrow- and lock the tensioner as shown with a commercially available steel pins (4 mm diameter) -1-. At the same time pay attention to that the >>tab<< of the tensioner is located between the Locking Pin: T10060A and the steel pin -1-.
-- Remove the Locking Pin: T10060A .
Continuation for All:
-- Remove the bolts -arrows-.
-- Remove the tensioner -1-.
Installing
Install in the reverse order of removal while noting the following:
- Different versions of the ribbed belt tensioners.
Versions with Mounting Tab with Flattened Contour:

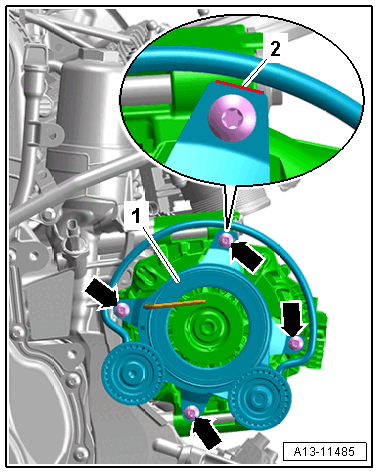

-- Position the ribbed belt tensioner >>1<< as shown at the same time pay attention that the mounting tab is aligned with the flattened contour -2- at approximately -12 o'clock-.
Versions without Mounting Tab with Flattened Contour:
-- Position the ribbed belt tensioner -1- as shown.
Continuation for All:
-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .
Tightening Specifications
