Impact Member, Removing And Installing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Move the door window into the "closed" position.

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the front door. Refer to DOOR, REMOVING AND INSTALLING .

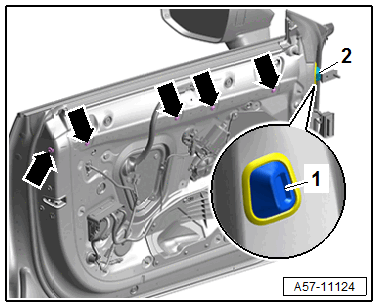

-- Pry off the cover -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the impact member -2- toward the front.

Installing

Install in reverse order of removal.

Tightening Specifications

Refer to OVERVIEW - DOOR AND IMPACT MEMBER, MARKET-SPECIFIC VERSIONS
