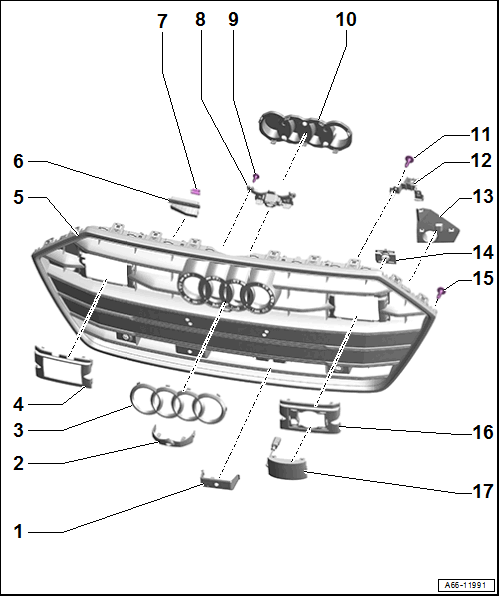

Overview - Radiator Grille
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Mount
- For license plate holder
- Equipped on some models
- Cover
- For the front peripheral camera
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
- Emblem
- Removing and Installing. Refer to EMBLEM, REMOVING .
- Cover
- For laser distance regulation control module
- Removing and Installing. Refer to SENSOR COVER, REMOVING AND INSTALLING .
- Radiator Grille
- Removing and Installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
- New Radiator Grille, Preparing for Installation
- A7 Sportback. Refer to NEW RADIATOR GRILLE, PREPARING FOR INSTALLATION, A7 SPORTBACK
- Name Badge
- Removing and Installing. Refer to RADIATOR GRILLE NAME BADGES AND EMBLEMS, REMOVING AND INSTALLING .
- Clip
- Quantity: 2
- Mount
- For the front peripheral camera
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
- Bolt
- Quantity: 2
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
- Cover
- For the emblem
- Removing and Installing. Refer to EMBLEM, REMOVING .
- Bolt
- Quantity: 2
- 2 Nm
- Adapter
- For the end plate
- Cover
- Equipped on some models
- Mount
- for the parking aid sensor
- A7 Sportback only: clipped into the radiator grille
- Bolt
- A6, S7: 2 pc.
- A7 Sportback, quantity: 4
- 2 Nm
- Cover
- For control module for adaptive cruise control
- Removing and Installing. Refer to SENSOR COVER, REMOVING AND INSTALLING .
- Cover
- With Heating Element for Adaptive Cruise Control Radar Sensor -Z185-
- Removing and Installing. Refer to ADAPTIVE CRUISE CONTROL ASSEMBLY .
