Emblem, Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

General Information - Name Badges and Emblems, Replacing. Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the center end panel. Refer to CENTER END PANEL, REMOVING AND INSTALLING .

-- If equipped, remove the peripheral camera mount. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .

-- Release the retainers -1- at the shown points -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -2-.

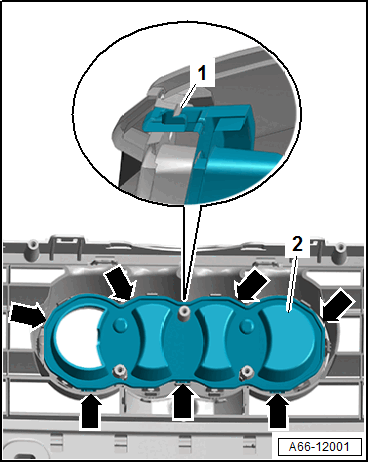

-- Release the tab -1- at the areas marked with -arrows- by lifting each securing tab -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the emblem from the radiator grille -3-.

Installing

Install in reverse order of removal and note the following:

-- Press on the emblem until it audibly engages.
