Ignition Coils, Removing And Installing, Cylinder Bank 2 (Left): Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the Engine Control Module -J623-. Refer to Engine/Motor Control Module -J623-, REMOVING AND INSTALLING .

-- Remove the connector -arrow- from the bracket and disconnect them and then free up the wires.

Courtesy of AUDI OF AMERICA, LLC

-- Equipment version with particulate filter: remove the connector -1- for the Exhaust Gas Temperature Sensor 3 Bank 2 -G497- from the bracket, disconnect it and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

-- Remove, disconnect and free up the connector from the bracket.

Courtesy of AUDI OF AMERICA, LLC

1. For the Oxygen Sensor 1 before Catalytic Converter -GX10-
2. For the Oxygen Sensor 2 After Catalytic Converter -GX8-

-- Remove the vacuum hose from the Brake System Vacuum Pump -V192-, free it up and move it to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring duct -1- for the EVAP system on the wiring duct -2-.

-- Free up the wiring duct and place it toward the rear.

-- Press the release buttons on both sides and remove the hoses -2- for the crankcase ventilation.

Courtesy of AUDI OF AMERICA, LLC

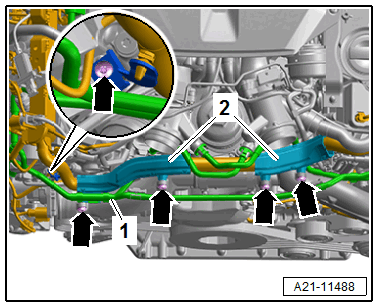

-- Remove the nuts -arrows- for the wiring duct -1-.

-- Disconnect the connectors -3- for the fuel injectors.

-- Disconnect the connectors:

Courtesy of AUDI OF AMERICA, LLC

1. For the Cylinder 5 Intake Cam Actuator 1 -F464-
2. For the Camshaft Position Sensor 4 -G301-
3. For the Cylinder 5 Exhaust Camshaft Adjuster 1 -F466-
4. For the Fuel Pressure Sensor 2 -G624-
5. For the Cylinder 8 Exhaust Camshaft Adjuster 1 -F478-
6. For the Cylinder 8 Intake Camshaft Adjuster 1 -F476-
7. For the Camshaft Position Sensor 2 -G163-
8. For the ignition coils

-- Push the wiring harness with wiring duct to the right side.

All additional procedures are described. Refer to IGNITION COILS, REMOVING AND INSTALLING .
