Engine Cover, Removing And Installing

WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Engine Cover

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of scalding due to hot heat shield.

It is possible to burn hands.

- Let the engine cool.

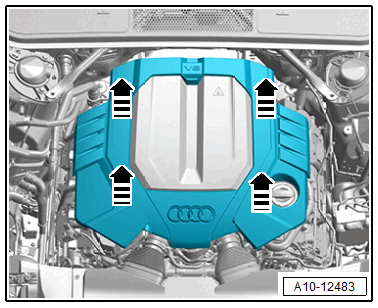

-- Carefully pull the engine cover off the ball pins one after the other -arrows-. Do not remove the engine cover on one side or in a jerking manner.

Remove the Heat Shield

Courtesy of AUDI OF AMERICA, LLC

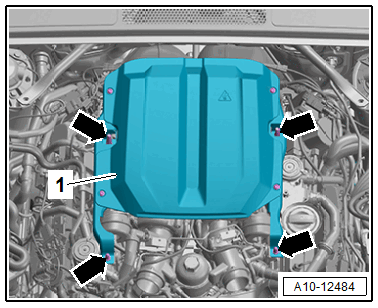

-- Remove the ball pins -arrows- and then remove the heat shield with the brackets -1-.

Installing

CAUTION:

Fire hazard and risk of damage due to a missing heat shield/engine cover.

- Never close the hood if the heat shield and engine cover are not installed.

- Never start the engine or move the vehicle if the heat shield/engine cover are missing and the hood is closed.

-- To prevent damage to the engine cover, do not hit it with a fist or a tool.

-- Position the engine cover while paying attention to the oil filler tube and oil dipstick.

-- Press the grommet of the engine cover onto the ball pins, first on the left side, then on the right side.

Tightening Specifications

Refer to OVERVIEW - ENGINE COVER
