Side Air Duct, Removing And Installing, A7 SPORTBACK
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Removing
-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Loosen the front wheel housing liner in the air duct area and push it to the side.

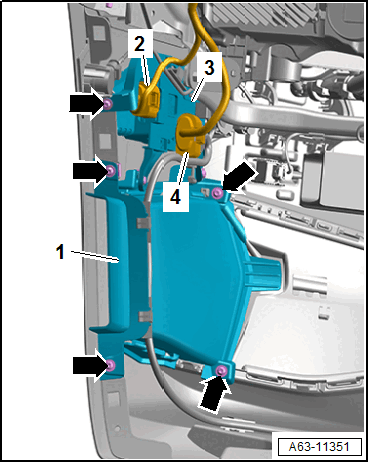

-- Disconnect the connectors -2 and 3- and free up the wiring harness -4-.
-- Remove the bolts -arrows-.
-- Remove the air guide -1-.
-- Left: free up the connector -2-.
-- Remove the bolts -arrows-.
-- Remove the mount -1-.
Tightening Specifications
- Refer to OVERVIEW - BUMPER COVER, A7 SPORTBACK
- Refer to OVERVIEW - FRONT WHEEL HOUSING LINER
