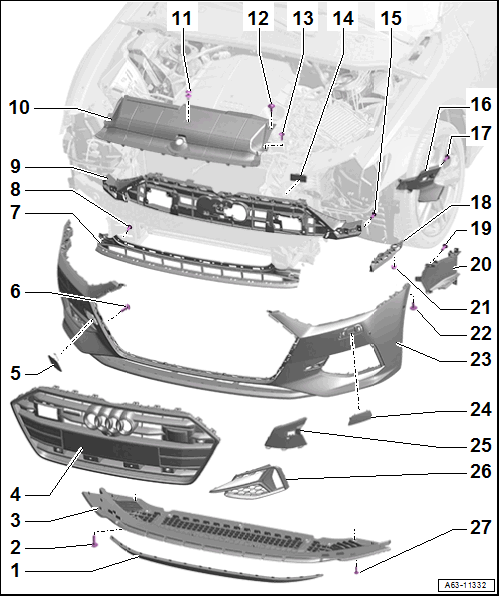

Overview - Bumper Cover, A7 SPORTBACK

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Front Spoiler
- Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, A6 AND A7 SPORTBACK .
Bolt
- Quantity: 5
- 5 Nm
End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PANEL, REMOVING AND INSTALLING .
Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
Towing Eye Cover
Bolt
- Tightening specification OVERVIEW - RADIATOR GRILLE
Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A7 SPORTBACK .
Bolt
- Quantity: 4
- 2 Nm
End Panel
- Center
- Removing and Installing. Refer to CENTER END PANEL, REMOVING AND INSTALLING, A7 SPORTBACK .
Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Expanding Rivet
Bolt
- Quantity: 3
- 5 Nm
Bolt
- Quantity: 2
- 2 Nm
Cap
Bolt
- On radiator grille; quantity: 11, 2 Nm
- On bumper cover; quantity: 4, 1.5 Nm
Deformation Element
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A7 SPORTBACK .
Bolt
- Quantity: 6
- Inner screw: 1.5 Nm
- Outer screw: 2 Nm
Bumper Cover Mount
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- Inner screw: 1.5 Nm
- Outer screw: 2 Nm
Air Duct
- Side
- Removing and Installing. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING .
Nut
- Quantity: 2
- 4 Nm
Bolt
- 2 Nm
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Adjusting. Refer to BUMPER COVER, ADJUSTING .
Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Trim
- For the side air intake grille
Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, A7 SPORTBACK .
Bolt
- Quantity: 6
- 2 Nm
