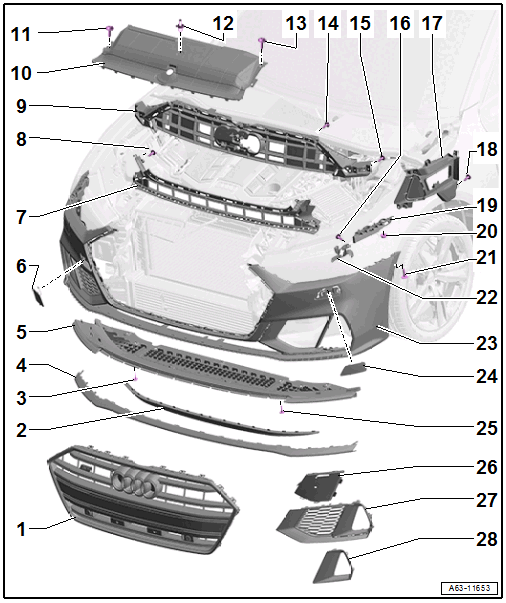

Overview - Bumper Cover, S7 SPORTBACK
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
- Front Spoiler
- Removing and Installing. Refer to FRONT SPOILER UPPER SECTION, REMOVING AND INSTALLING, S7 SPORTBACK .
- Bolt
- Quantity: 5
- 5 Nm
- Front Spoiler-Upper Section
- Removing and Installing. Refer to FRONT SPOILER UPPER SECTION, REMOVING AND INSTALLING, S7 SPORTBACK .
- End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PANEL, REMOVING AND INSTALLING .
- Towing Eye Cover
- Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, S7 SPORTBACK .
- Bolt
- Quantity: 6
- 2 Nm
- End Panel
- Center
- Removing and Installing. Refer to and CENTER END PANEL, REMOVING AND INSTALLING, A7 SPORTBACK .
- Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2 Nm
- Expanding Rivet
- Bolt
- Quantity: 3
- 5 Nm
- Bolt
- Quantity: 11
- 2 Nm
- Bolt
- Quantity: 4
- 1.5 Nm
- Bolt
- Quantity: 4
- 2 Nm
- Air Duct
- Side
- Removing and Installing. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 2 Nm
- Bumper Cover Mount
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 4 Nm
- Bolt
- 2 Nm
- Bracket
- For central connector
- Only on the left side of vehicles without radar sensor
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Adjusting. Refer to BUMPER COVER, ADJUSTING .
- Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 6
- 2 Nm
- Cover
- For the side air intake grille
- Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, S7 SPORTBACK .
- Trim
- For the side air intake grille
- Removing and Installing. Refer to SIDE TRIM, REMOVING AND INSTALLING, S7 SPORTBACK .
