Upper Air Duct Pipe, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Socket - T30:T10405
Removing
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
Left Air Duct Pipe:

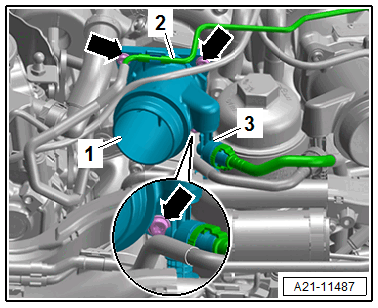

-- Press the release buttons on both sides and remove the hose -4- for the crankcase ventilation.
-- Free up the vacuum line -3-.
-- Remove the bolts -arrows-.
-- Free up the air duct pipe -2- and remove them upward at the same time pay attention to the Venturi injector -1-.
Right Air Duct Pipe:
-- Free up the vacuum line -2-.
-- Remove the bolts -arrows-.
-- Free up the air duct pipe -1- and remove them upward at the same time pay attention to the Venturi injector -3-.
